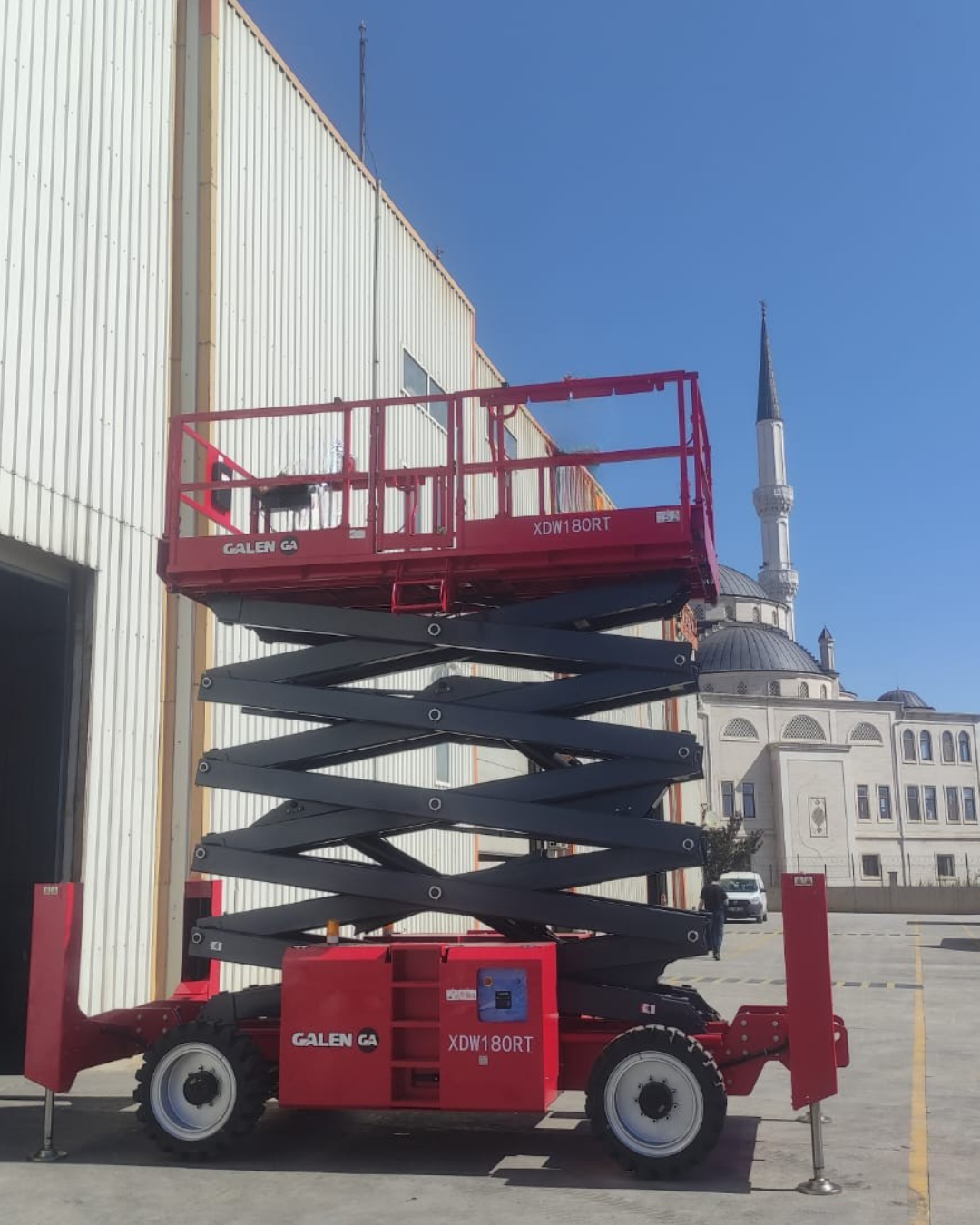

XDW180RT

ROUGH TERRAIN SCISSOR LIFT

The XDW180RT, designed for rough terrain, delivers powerful traction, stable performance, and smooth control on demanding job sites. With its durable build and reliable operation, it ensures consistent productivity and lower operating costs throughout the workday.

Platform Height: 16 m

Max Working Height: 18 m

Max Platform Capacity: 680 kg

Width: 2.3 m

Brochure

Size
Maximum Working Height	18 m
Maximum Platform Height	16.3 m
Platform Extension Length	1.0 m
Lifting Capacity	750 kg
Lift Capacity on Extension	200 kg
Platform Dimensions (L × W × H)	3.9 × 2.18 × 1.15 m
Platform Length (Double Extended)	5.9 m
Platform Skirting Board Height	0.15 m
Overall Length with Outriggers	4.9 m
Overall Width	2.3 m
Overall Height (Stowed)	3.26 m
Height with Guardrails Folded	2.47 m
Wheelbase	2.84 m
Ground Clearance	0.32 m
Tire Size	33 × 12 – 20 in
Performance
Turning Radius – Inside	2.5 m
Turning Radius – Outside	5.65 m
Raising / Lowering Time	80 / 90 s
Drive Speed (Stowed)	4.5 km/h
Drive Speed (Raised)	1 km/h
Drive Height	9.6 m
Gradeability	40%
Outrigger Level Ability (Front–Back)	7°
Outrigger Level Ability (Side–Side)	11°
Control Mode	Proportional control
Drive Mode	4-wheel drive
Hydraulic Tank Capacity	120 L
Power
Power Source	Lithium battery
Weight
Machine Weight	9,010 kg

Foldable guardrails
Diagnostic system
AC power line to platform
Four-wheel drive
Tilt sensor with audible warning
Lowering warning alarm
Horn
Hour meter
Emergency pump
Proportional control system
Heavy-duty off-road tyres
Safety support bars / safety props
Dual-flashing beacon light
